Intelligent Photoelectric Smoke Detector

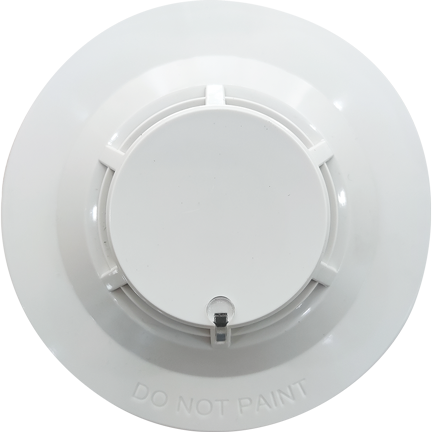

PW-600P Intelligent Photoelectric Smoke Detector
PW-600P is an intelligent photoelectric smoke detector which featured a new generation of smoke detector based on advanced infra-red and blue light spectrum smoke detection technology. It is equipped with intelligent algorithm which can adapt to numerous fire patterns, and can sense early warning fire accurately and timely. The detector is compatible with fire alarm system to provide protection for open areas.
The detector has a 360° visible LED indicator light that blinks when the detector is in the monitoring state. When the detector alarm, the controller sends a command to latched the indicator in steady condition. When the controller is reset, the detector returns to the normal monitoring state and the indicator blinks in polling state. The indicator blink polling can be disabled when special needs are required.
Intelligent Photoelectric Smoke Detector
PW-600P Intelligent Photoelectric Smoke Detector
Technical Parameter
RatedVoltage:DC24V.
Standby Current:380µA@DC24V.
Alarm Current:1.5mA@DC24V.
OperatingTemperature: -10ºC ~ 55ºC.
Operating Humidity: 5% ~ 95%RH Non-condensing.
Dimension: Φ103×49mm (Including base).
Weight: 60g.
SoftwareVersion: A.
Carried Standard: GB 4715-2005.
