Sounder Base

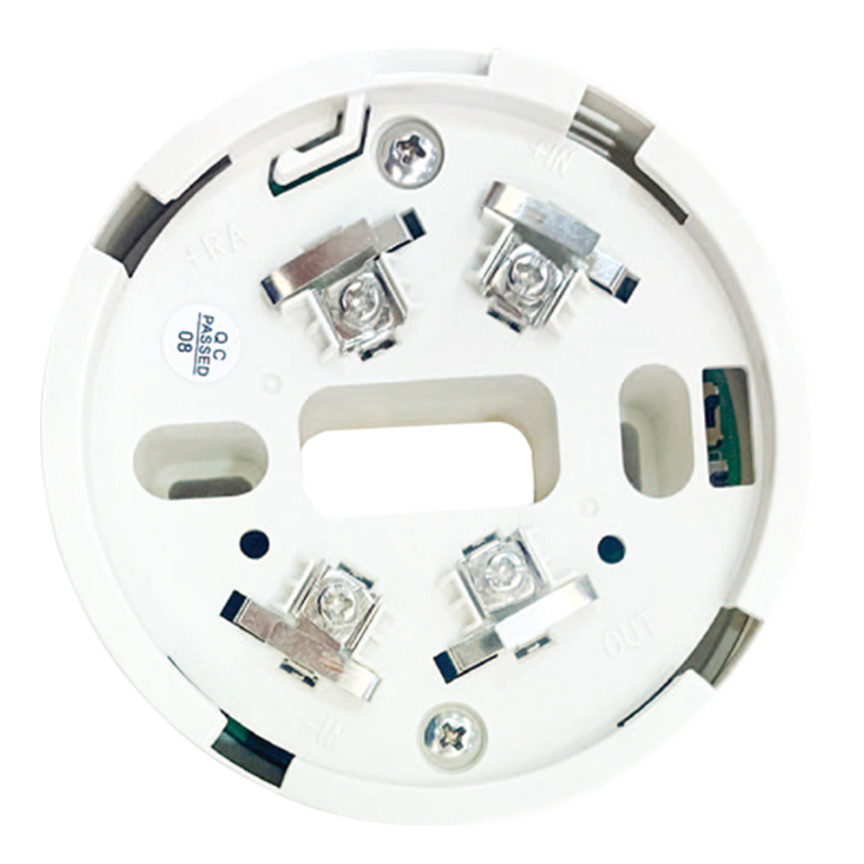

P600BH Sounder Base
P600BH sounder base is a detector base with buzzer. When the detector connected with the same address sends out sound alarm, the fire alarm system will trigger the sounder base to send out sound alarm.
The communication line and power line of the sounder base all adopt non-polar wiring design, which is convenient for on-site wiring installation.
Sounder Base
P600BH Sounder Base
Technical Parameter
Standby Current: 370µA@DC24V.
External SupplyVoltage: DC24V.
Standby Current: 320uA@DC24V.
Alarm Current: 10mA@DC24V.
Sound Pressure Level: ≥75dB.
Applications: Indoor.
OperatingTemperature: -10ºC ~ 55ºC.
Operating Humidity: 5% ~ 95%RH Non-condensing.
Dimension: φ108mm×29.7mm.
Weight: 103g.
SoftwareVersion: A.
