Input Module

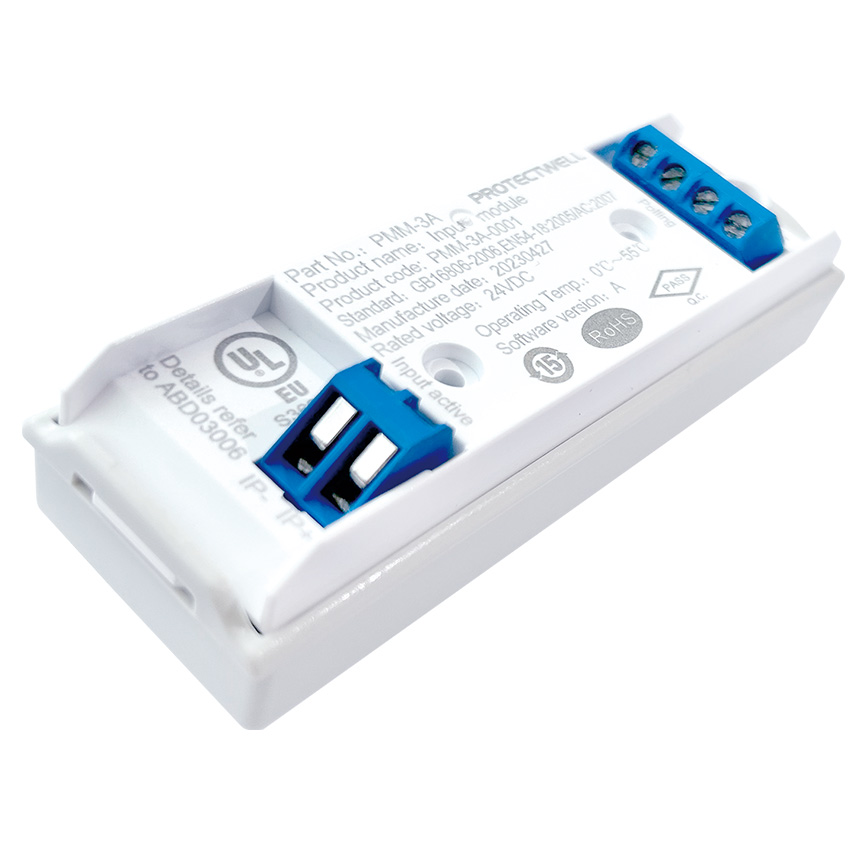

PMM-3A Input Module
PMM-3A input module is used to receive various dry contact signals, such as signals from water flow indicator, butterfly valve, pressure switch, etc.
Using SLC communication, electronic address programming occupying one address. Mixed addressing with other detectors or modules, which makes on-site wiring, installation and programming more convenient.
Input Module
PMM-3A Input Module
Technical Parameter
SupplyVoltage (Vmin-Vmax): 17V – 28V DC.
Communication ProtocolVoltage:5V – 9V peak to peak.
RatedVoltage:24V DC.
Quiescent Current: 500µA (Rated voltage 24V DC).
Alarm Current: 5.5mA (Rated voltage 24V DC).
OperatingTemperature:-10ºC ~ 55ºC.
Humidity:0% - 95%RH (non-condensing).
Dimension: 33mm length × 34mm width ×102mm height.
Mounting Dimension: 35mm DIN rail mounting.
Weight: 35g.
Standard: GB16806-2006 & EN54-18:2005/AC:2007.
Approvals: CCCF & UL.
