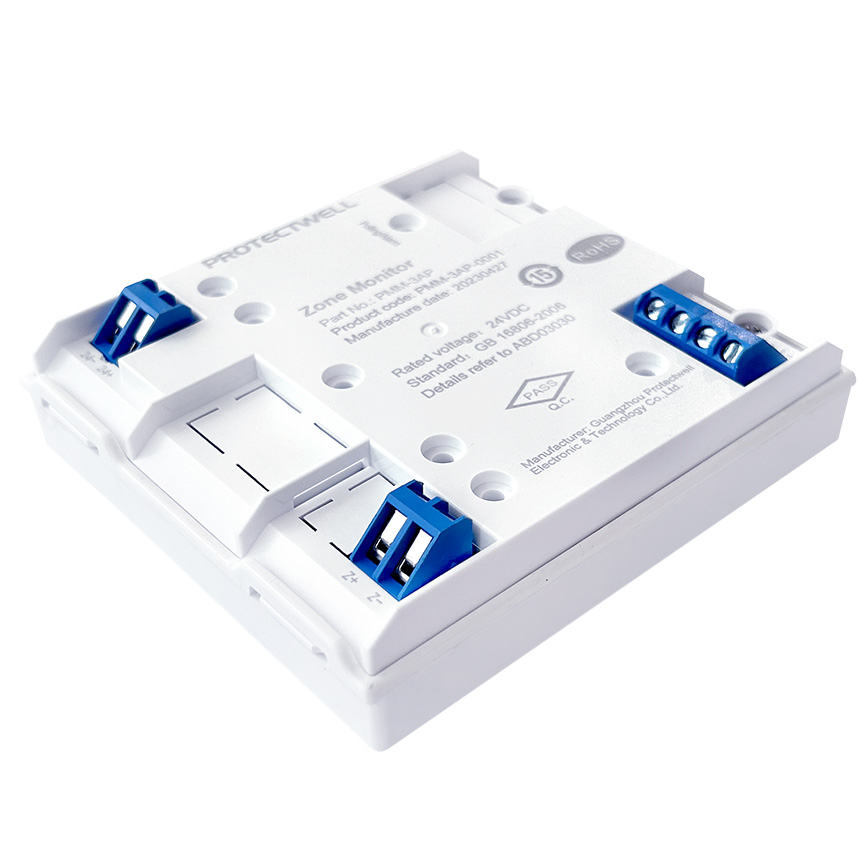

PMM-3AP Zone Module
The PMM-3AP zone module is used for an intelligent four-wire system, each module in the loop must be addressed, its address is set by handheld programmer LP300.
The zone module is used to monitor the operating state of traditional detectors (normal, open, or alarm) and feedback to the system. All detectors monitored must be compatible with this module.
Return
Zone Module
PMM-3AP Zone Module
Return
Technical Parameter
Maximum Capacitor on ZoneTerminals: 20µF.
OperatingTemperature: -40ºC ~ 70ºC.
Operating Humidity:0% - 95%RH (non-condensing).
Dimension: 88mm length × 34mm width ×102mm height.Materials: White flame-retardant polycarbonate/PC+ABS.Weight: 95g.
Standard: GB16806-2006.
Approvals: CCCF.RatedVoltage:24VDC.
Loop Supply voltage: 17-28VDC.
Communication ProtocolVoltage: 5V – 9V peak to peak.24VDC Quiescent Current:6.5mA.
24VDC Alarm Current: 55mA.
Loop Alarm Current: 3mA.
Loop Quiescent Current: 2mA.
End-of-line ResistorValue: 6.2kΩ.
Max Detection Zone lmpedance: 50Ω.
MaxVolume of Detectors: 20.
StabilizationTime on Power-up: 4 seconds.
