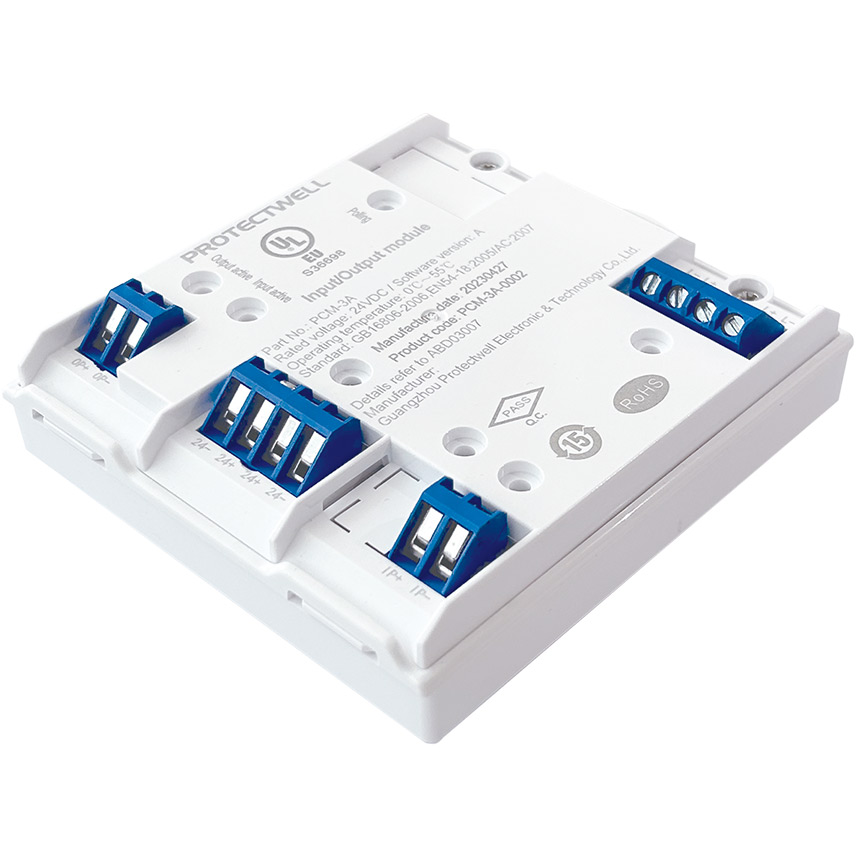

PCM-3A Input-output Module
PCM-3A provides the fire alarm control panel control on/off signal to the field devices with the line supervisory. Using SLC communication, electronic address programming, need external 24VDC power supply.
Mix addressing of detectors and modules on same SLC, which makes on-site wiring, installation and programming more convenient.
PCM-3A Input-output Module
Technical Parameter
SupplyVoltage (Vmin-Vmax): 17V – 28V DC.
Communication ProtocolVoltage:5V – 9V peak to peak.
RatedVoltage:24V DC.
Quiescent Current: 2mA (Rated voltage 24V DC).
Maximum Current: 5mA (Rated voltage 24V DC).
Maximum Output Current: 1A @30V DC.
OperatingTemperature:-10ºC ~ 55ºC.
Humidity:0% - 95%RH (non-condensing).
Dimension: 88mm length × 34mm width ×102mm height.
Weight: 80g.
Standard: GB16806-2006 & EN54-18:2005/AC:2007.
Approvals: CCCF & UL.
