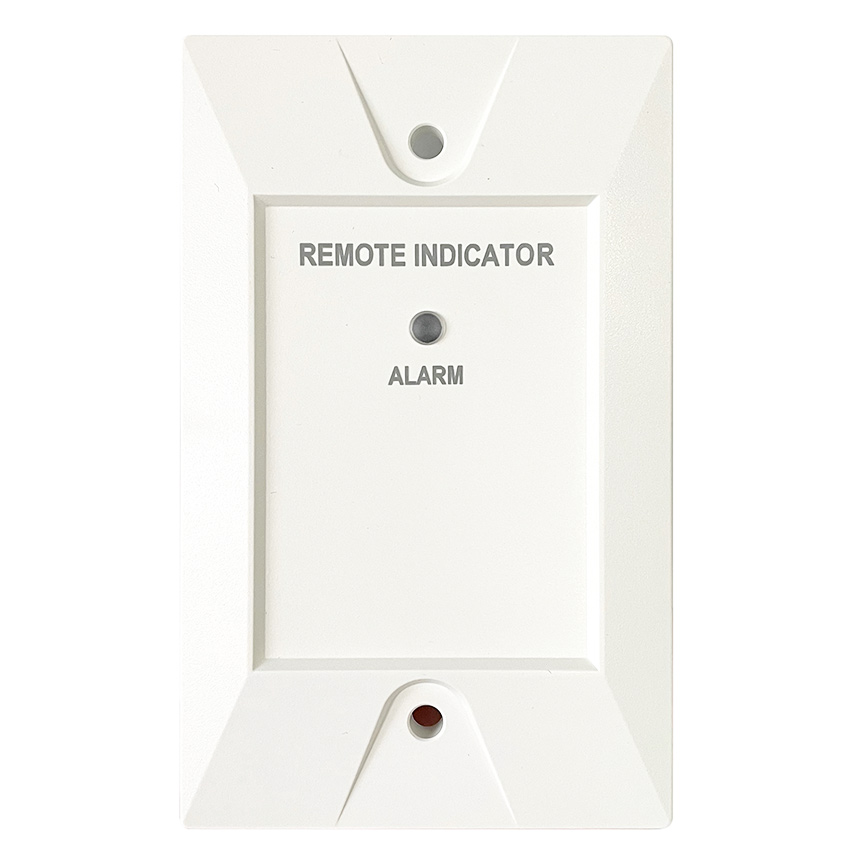

PW-600DL Intelligent Remote LED Indicator
PW-600DL is an intelligent remote LED indicator. When the remote LED indicator is connected to the loop, it can display the status of the indicator light of its same address device in real time.The communication line of the remote LED indicator adopts non-polar wiring design, which is convenient for on-site wiring
installation.
PW-600DL Intelligent Remote LED Indicator
Technical Parameter
RatedVoltage:DC24V.
Standby Current: 370uA@DC24V.
Alarm Current: 2.5mA@DC24V.
OperatingTemperature: -10ºC ~ 55ºC.
Operating Humidity: 5% ~ 95%RH Non-condensing.
Dimension: 115mm×70mm×27mm.
Weight: 51g.
Accessory: screw #6-32 (two).
